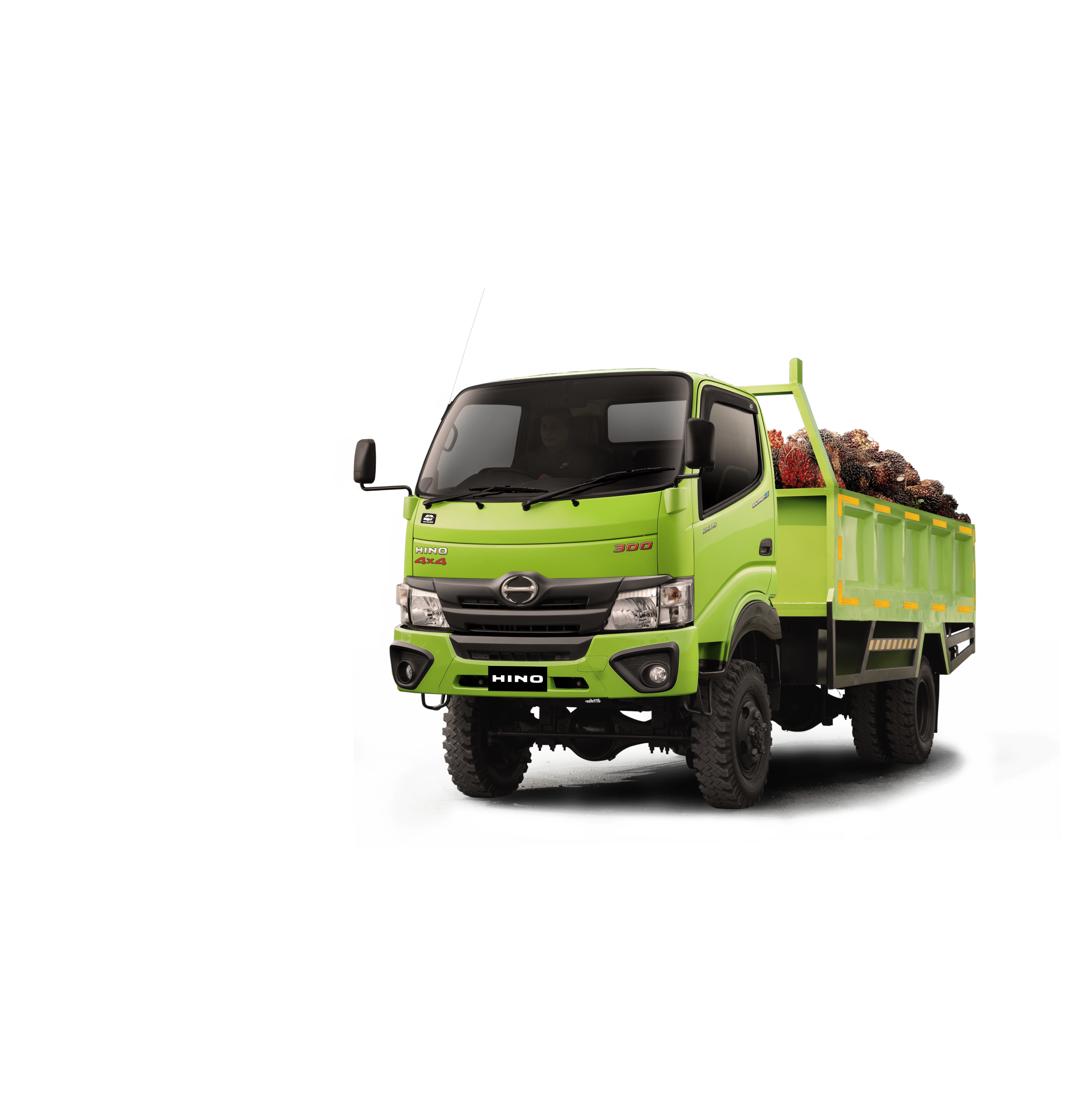

136 HDX 4x4 MT
136 HDX 4x4 MT
| Kecepatan Maksimum | (Km/h) | 93 |
| Daya Tanjak | (tan %) | 67 |
| Model | - | N04C-WY |
| Model Tipe | - | Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | (PS/rpm | 136 / 2.500 |
| Daya maksimum | (Kgm/rpm) | 40 / 1.400-2.500 |
| Jumlah silinder | - | 4 |
| Diameter x Langkah Piston | (mm) | 104 x 118 |
| Isi Silinder | (cc) | 4,009 |
| Tipe | - | Pelat Kering Tunggal; Hydraulic Operation |
| Diameter Cakram | (mm) | 300 |
| Tipe | - | RE61 |
| Ke-1 | - | 6.370 |
| Ke-2 | - | 3.870 |
| Ke-3 | - | 1.913 |
| Ke-4 | - | 1.461 |
| Ke-5 | - | 1.000 |
| Ke-6 | - | 0,703 |
| Mundur | - | 5.926 |
| Type | - | Separate with Transmission |
| Gear Ratio | High 4x4 | 1 : 1 |
| Gear Ratio | Low 4x4 | 1 : 2,09 |
| Tipe | - | Power Steering (Recirculating Ball Screw) |
| Minimal Radius Putar | (m) | 8,6 |
| Depan | - | Full-Floating, Single Reduction, Single Speed with Constant, Velocity, Universal Joint |
| Belakang | - | Full Floating Tipe Hypoid Gear |
| Perbandingan Gigi Akhir | - | 6,833 |
| Rem Utama | - | Vaccum Servo dengan sirkuit ganda; dilengkapi dengan Booster |
| Rem Pelambat | - | Terletak pada Pipa Gas Buang |
| Rem Parkir | - | Internal Expanding pada Output Shaft Transmission |
| Ukuran Ban | - | 7.50-16-14PR (LUG) |
| Ukuran Rim | - | 16 x 6.00GS-127 |
| Jumlah Ban | - | 6 (+1) |
| Accu | (V-Ah) | 12V-100Ah x 1 |
| Kapasitas | (L) | 100 |
| Jarak Sumbu Roda | WB (mm) | 3.386 |
| Total Panjang | OL (mm) | 6.026 |
| Total Lebar | OW (mm) | 1.961 |
| Total Tinggi | OH (mm) | 2.365 |
| Lebar Jejak Depan | FR Tr (mm) | 1.530 |
| Lebar Jejak Belakang | RR Tr (mm) | 1.482 |
| Julur Depan | FOH (mm) | 1.070 |
| Julur Belakang | ROH (mm) | 1.552 |
| Kabin Kesumbu Roda Belakang | CA (mm) | 2.920 |
| Depan & Belakang | - | Rigid Axle dengan Pegas Daun Semi Elliptic dilengkapi dengan Shock Absorber dan stabilizer depan |
| Berat Kosong | (kg) | 2.940 |
| Berat Total Kombinasi | (kg) | 8.600 |
