TRUK

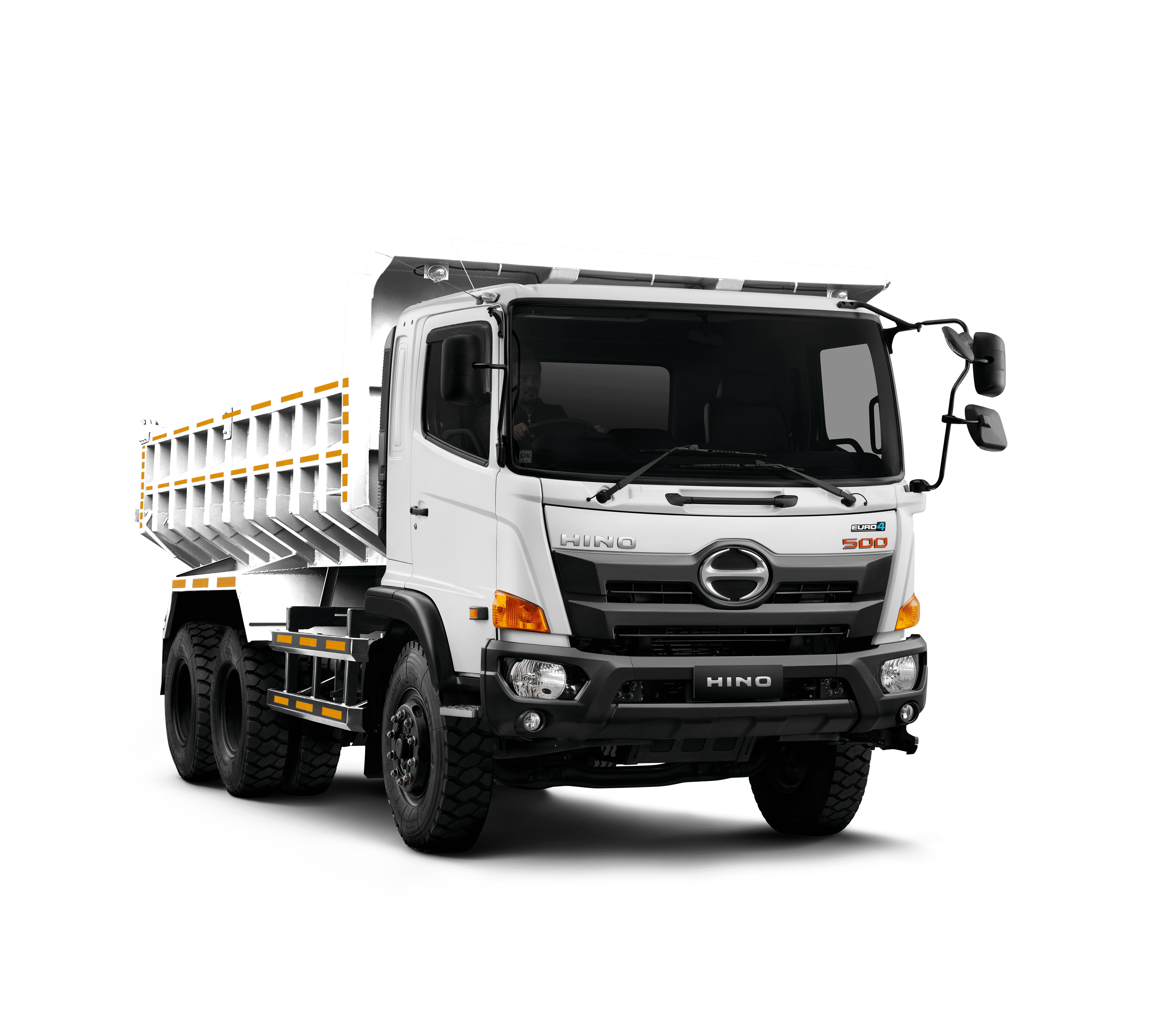

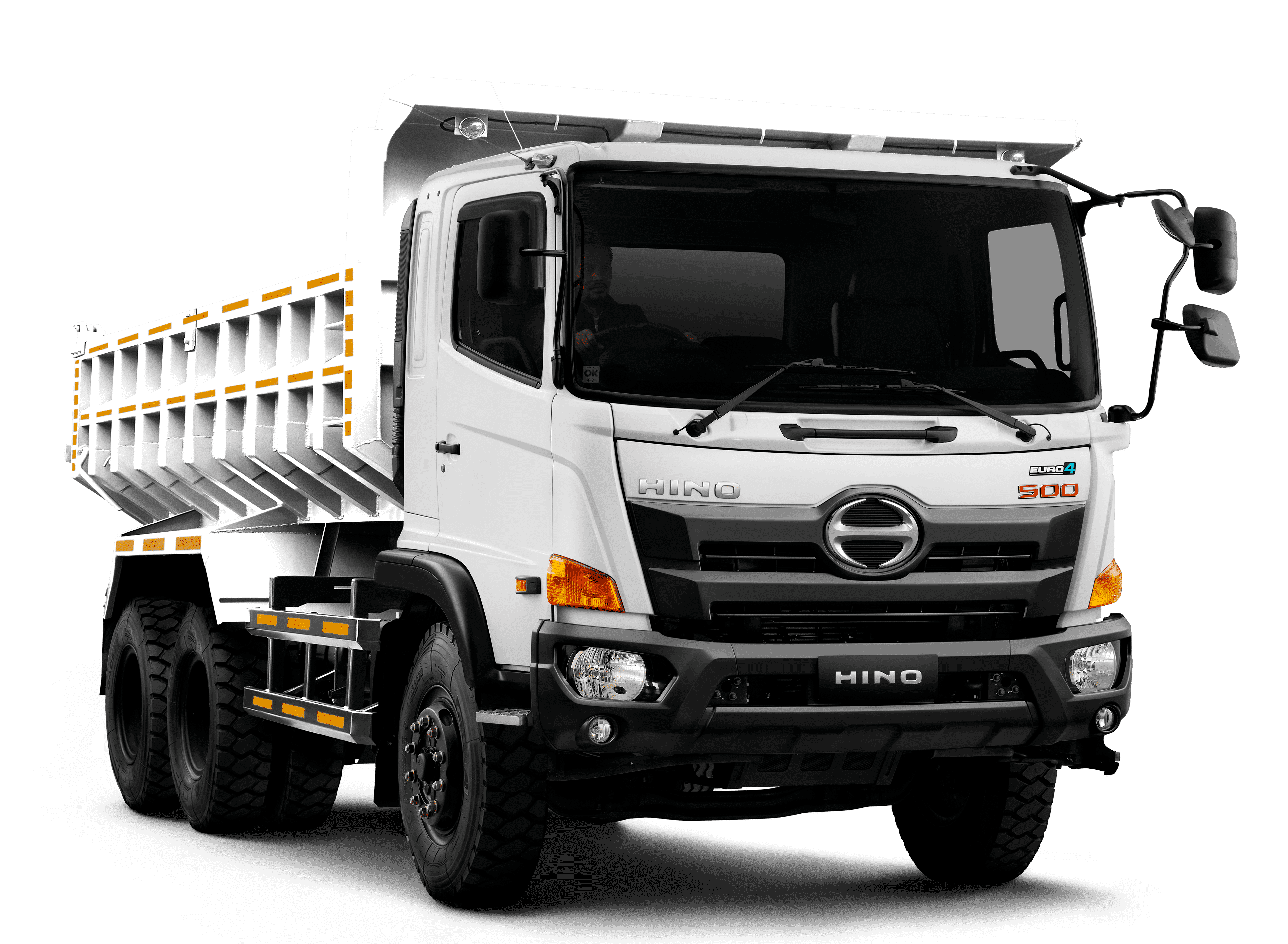

FM 280 JD R Mining - Euro4
FM 280 JD R Mining - Euro4
| Kecepatan Maksimum | (Km/h) | 77 |
| Daya Tanjak | (tan %) | 60 |
| Model | - | J08E-WD |
| Model Tipe | - | Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | JIS GROS (PS/rpm) | 285/2.500 |
| Daya maksimum | JIS GROS (Kgm/rpm) | 85/1.500 |
| Tenaga Maksimum | ISO-NET (PS/rpm) | 280/2.500 |
| Daya maksimum | ISO-NET (Kgm/rpm) | 84/1.500 |
| Jumlah silinder | - | 6 |
| Diameter x Langkah Piston | (mm) | 112 x 130 |
| Isi Silinder | (cc) | 7.684 |
| Diameter Cakram | (mm) | 380 |
| Tipe | - | Pelat Kering Tunggal, dengan Coil Spring |
| Tipe | - | M009DD |
| C | - | 14,056 |
| Ke-1 | - | 9,647 |
| Ke-2 | - | 6,993 |
| Ke-3 | - | 5,021 |
| Ke-4 | - | 3,636 |
| Ke-5 | - | 2,653 |
| Ke-6 | - | 1,923 |
| Ke-7 | - | 1,380 |
| Ke-8 | - | 1,000 |
| Mundur | - | 1,3636 |
| Tipe | - | Integral Power Steering |
| Minimal Radius Putar | (m) | 8,2 |
| Depan | - | Reverse Elliot, I-Section Beam |
| Belakang | - | Full Floating Type Hypoid Gear |
| Perbandingan Gigi Akhir | - | 6,428 |
| Rem Utama | Utama | Full Air Brake |
| Rem Pelambat | - | Exhaust Brake |
| Rem Pelambat | Pelambat Tambahan | Electromagnetic Retarder |
| Rem Parkir | - | Spring Brake |
| Ukuran Rim | - | 20X7.50V-165 |
| Ukuran Ban | - | 11.00-R20-18PR |
| Jumlah Ban | - | 10 + 1(Cadangan) |
| Accu | (V-Ah) | 12V-65AH×2 |
| Kapasitas | (L) | 200 |
| Jarak Sumbu Roda | WB (mm) | 4.030+1.350 |
| Total Panjang | OL (mm) | 8.600 |
| Total Lebar | OW (mm) | 2.490 |
| Total Tinggi | OH (mm) | 2.760 |
| Lebar Jejak Depan | FR Tr (mm) | 2.050 |
| Lebar Jejak Belakang | RR Tr (mm) | 1.860 |
| Julur Depan | FOH (mm) | 1.280 |
| Julur Belakang | ROH (mm) | 1.940 |
| Kabin Kesumbu Roda Belakang | CA (mm) | 3.875 |
| Depan & Belakang | - | Tipe Suspensi Trunnion, Rigid Axle dengan Pegas Daun Semi Elliptic |
| Berat Kosong | (kg) | 8.395 |
| Berat Total Kendaraan | (kg) | 26.000 |
